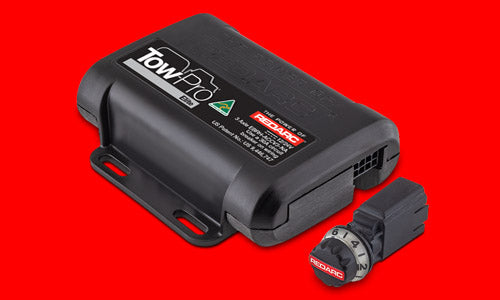

The third generation in the Tow-Pro Elite range, this electric brake controller is the ultimate safety device for anyone towing a trailer, camper trailer or boat trailer; from the smoothest highways to the roughest off-road tracks, the REDARC Tow-Pro Elite V3 Brake Controller ensures safe braking no matter what type of road surface you're driving on. With the turn of a dial, you can switch from 'Proportional mode' for inertia-sensing control on tarmac to 'User-Controlled mode' for mud or gravel roads when you need that extra bit of control.

What we like about it:

- Stick it anywhere you want:
Its 3-axis accelerometer measures acceleration in all directions.

- Let the REDARC Tow-Pro do the work:
Proportional mode lets you drive and brake without needing to think about your trailer.

- Stay in control when you need it most:
User-controlled mode lets you adjust the brake level to your liking so you get the ultimate control and safety for off-road driving.


So what's new with V3?

The REDARC Tow-Pro Elite V3 Brake Controller comes with a smaller, sleeker design head and easy-as installation so you can get back right back to the fun stuff. Made to work with new vehicle technology and the curved dashes of European models, its smaller design means you won't have it poking into your leg or blocking the lower airbags - a win-win all round.

And if ya ain't happy, the REDARC Brake Controller comes with a 2-year manufacturer's warranty covering faults and material defects.

FEATURES

- Ensures safe braking when towing a trailer
- 2 braking modes – automatic and user-controlled
- Dash-mounted control knob allows easy switching between modes
- Suitable for 12V and 24V vehicles
- Works with electric and electric/hydraulic trailer brakes
- Works with modern vehicles and selected TPSI switch inserts and TPW wiring kits, which can be further enhanced with the use of a 7 amp Encapsulated Power Diode
- Does not require manual selection or additional wiring and components to switch between systems
- Active Calibration constantly monitors the direction of travel and even calibrates when no trailer is attached
- ADR-compliant when installed according to the directions, and approved by AL-KO for use with their ESC and DSC systems

SPECIFICATIONS

- Model number: EBRH-ACCV2
- Input (Operating) Voltage: 9 - 32VDC
- Input Fuse Rating: 30A (Circuit Breaker)
- Standby Current Draw: <10mA
- Output System Voltage: 12VDC
- Output Current Rating (Cont.): 25A
- Length (mm): 85
- Width (mm): 100
- Height (mm): 30
- Weight (kg): 0.2
