Hilux 08/20+ Offroad Frontal Pack - GT Bull Bar / 12,000LBS Winch / R85 LED Spotties
TOYOTA SR & SR5 Hilux 08/2020 + Current Model Offroad Frontal Pack GT V2 Bull Bar +...
- $2,699.00 AUD
$3,047.00 AUD- $2,699.00 AUD
- Unit price
- per
Couldn't load pickup availability
Description

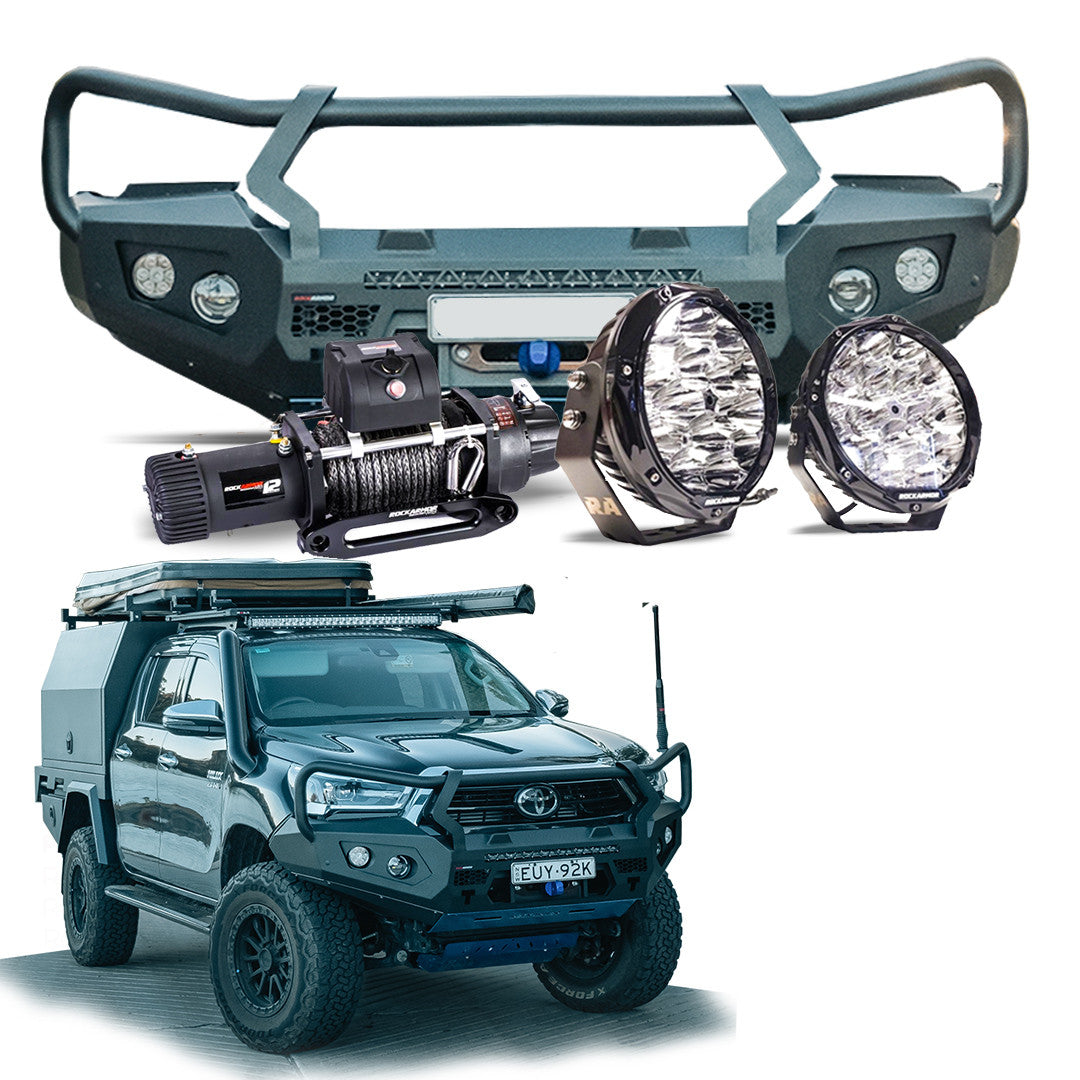

xTOYOTA SR & SR5 Hilux 08/2020 + Current Model
Offroad Frontal Pack
GT V2 Bull Bar + R85Spotties + 12,000Lbs Rockarmor Winch

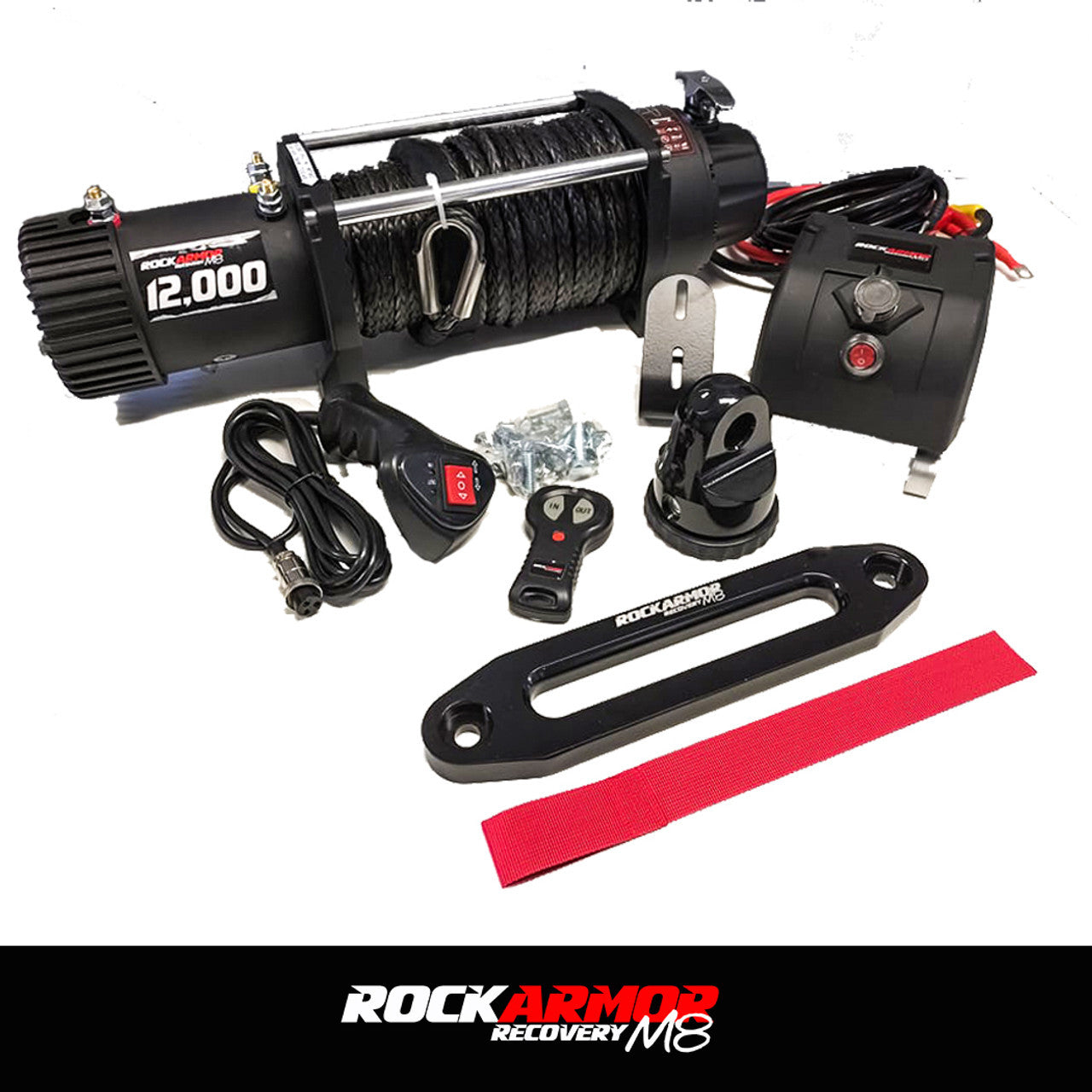

N80 Hilux Rockarmor GT V2 Bull Bar | 08/2020+ https://www.youtube.com/watch?v=8PClSMJqStoWinch Specifications:
4x4 Line Pull: 5,443kgs / 12,000lbs
Motor: Series Wound DC12V / 7.2HP
Gear Train: 3 Stage Planetary
Gear Ratio: 216:1 Free Spooling Clutch with Rotating Gear Ring
IP67 Rated (2 Hours Fully Submersible)
Synthetic Winch Rope: 9.5mm x 28 metres
Wireless Receiver:
Built into the Control Box
Isolator Switch: Built into the Control Box
Drum Size: 64mm x 224mm
Weight of Winch: 26kgs
Mounting Bolt Pattern: 254mm x 114.3mm
Dimensions: 535 X 162 X 170MM

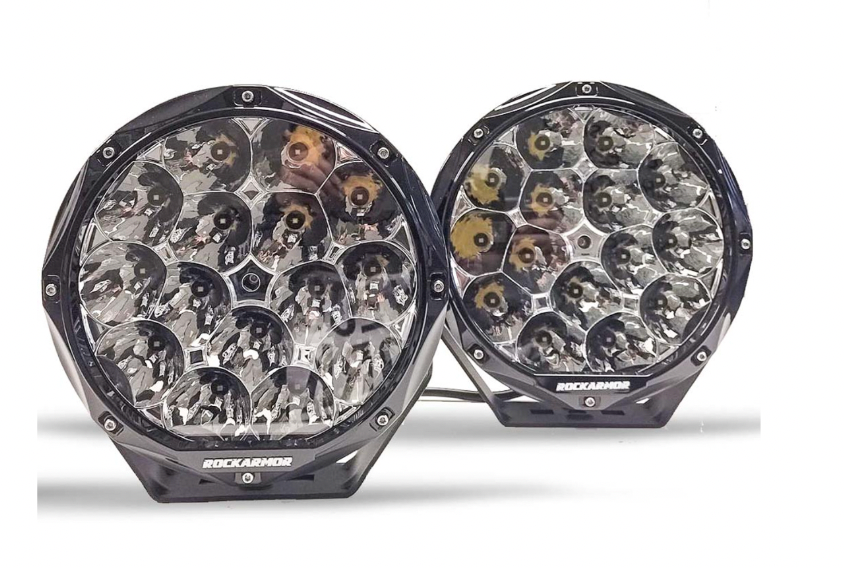

R85 LED SPOTTIES SPECS VOLTAGE: 9-32v LED CHIPS: 15 x 10w High Intensity Osram Chips Waterproof & Dustproof: IP68 LED POWER: 150w LUMENS: 16600LM COLOUR TEMP: 6500 (Kelvin) BEAM: Driving Spot LUMINATION DISTANCE: 1 LUX @800M MATERIAL: Diecast Aluminium Steel Bracket LENS MATERIAL: Poly Carbonate Lens LIFETIME: 80,000+ hours Warranty: 1 year
If your vehicle's suspension is not yet upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the bull bar & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will bumpy which can possibly lead to further damage. We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bull bar and body of the vehicle. This will allow for movement where the chassis & body move independently. Warranty: The bull bar / Winch / LED Spotties are provided with a 12months Manufacturers Warranty from Rockarmor 4x4
R85 LED SPOTTIES SPECS VOLTAGE: 9-32v LED CHIPS: 15 x 10w High Intensity Osram Chips Waterproof & Dustproof: IP68 LED POWER: 150w LUMENS: 16600LM COLOUR TEMP: 6500 (Kelvin) BEAM: Driving Spot LUMINATION DISTANCE: 1 LUX @800M MATERIAL: Diecast Aluminium Steel Bracket LENS MATERIAL: Poly Carbonate Lens LIFETIME: 80,000+ hours Warranty: 1 year If your vehicle's suspension is not yet upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the bull bar & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will bumpy which can possibly lead to further damage. We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bull bar and body of the vehicle. This will allow for movement where the chassis & body move independently. Warranty: The bull bar / Winch / LED Spotties are provided with a 12months Manufacturers Warranty from Rockarmor 4x4 Related Products
