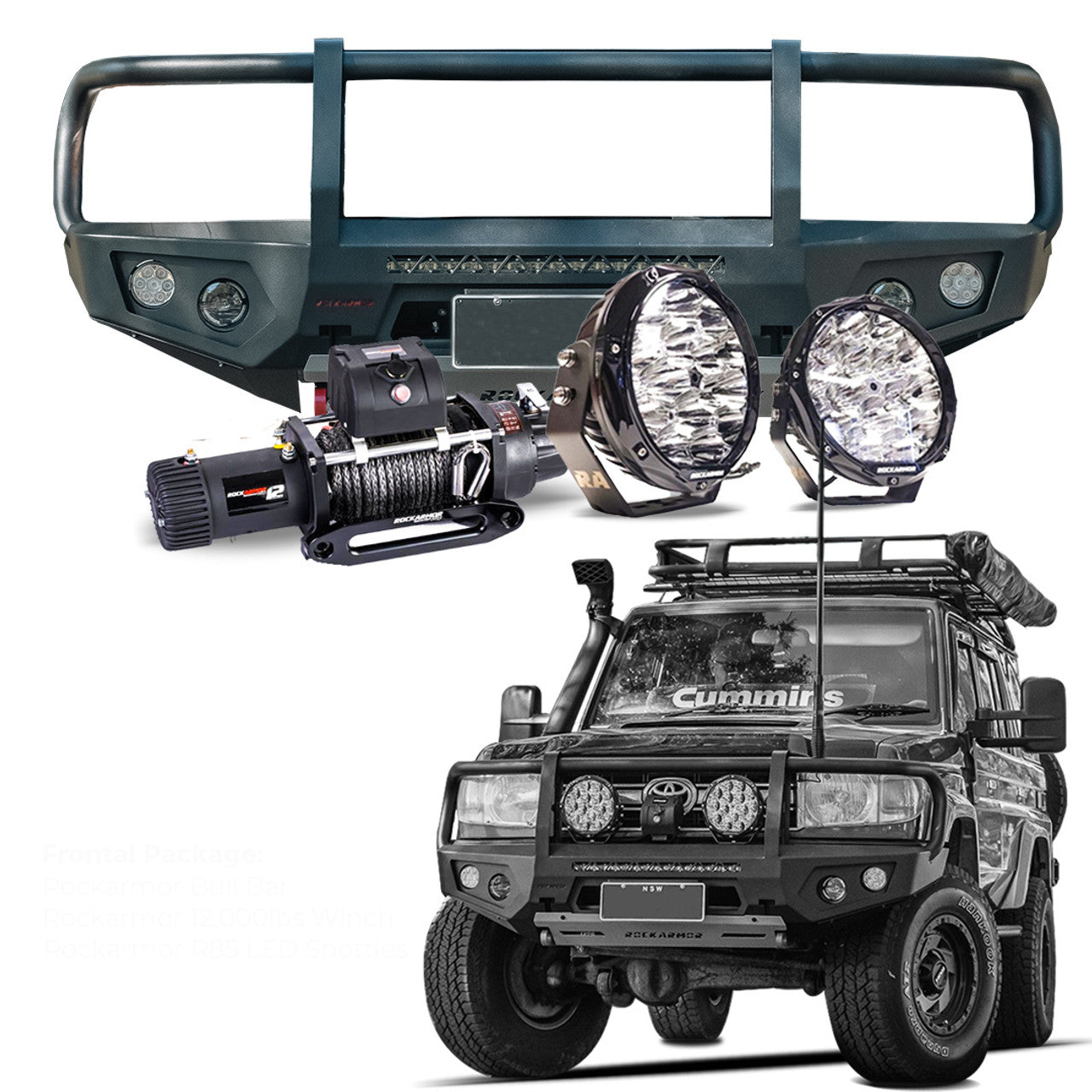

76 / 78 / 79 Series Landcuiser Offroad Frontal Pack

OFFROAD FRONTAL PACKAGE BY ROCKARMOR

Suits Vehicles: 76 Series Landcruiser / 78 Series VDJ Troopy / 79 Series Dual Cab Ute

Package includes:

Rockarmor GT Bull Bar

Rockarmor 12,000lbs Winch

Rockarmor R85 Spotties

Winch Specifications:

Manufacturer: Rockarmor 4x4

Line Pull:  5,443kgs / 12,000lbs

Motor: Series Wound DC12V / 7.2HP

Gear Train: 3 Stage Planetary

Gear Ratio: 216:1

Free Spooling Clutch with Rotating Gear Ring

IP67 Rated (2 Hours Fully Submersible)

Synthetic Winch Rope: 9.5mm x 28 metres

Wireless Receiver: Built into the Control Box

Isolator Switch: Built into the Control Box

Drum Size: 64mm x 224mm

Weight of Winch: 26kgs

Mounting Bolt Pattern: 254mm x 114.3mm

Dimensions: 535 X 162 X 170MM

Warranty: 5 Years Limited Electrical & Mechanical

ROCKARMOR R85 LED SPOTTIES

VOLTAGE: 9-32v

LED CHIPS: 15 x 10w High Intensity Osram Chips

Waterproof & Dustproof: IP68

LED POWER: 150w

LUMENS: 16600LM

COLOUR TEMP: 6500 (Kelvin)

BEAM: Driving Spot

LUMINATION DISTANCE: 1 LUX @800M

MATERIAL: Diecast  Aluminium Steel Bracket

LENS MATERIAL: Poly Carbonate Lens

LIFETIME: 80,000+ hours

Warranty: 1 year
