The Complete 12volt Powerstation for your 4x4

THE COMPLETE 12VOLT INCAR POWER STATION

POWERED BY BAINTECH / REDARC / POWERTECH / DRIVETECH

"PERFECT FOR THOSE WISHING TO INSTALL THEIR 12VOLT SYSTEM BEHIND THE REAR SEAT ON IN A CANOPY"

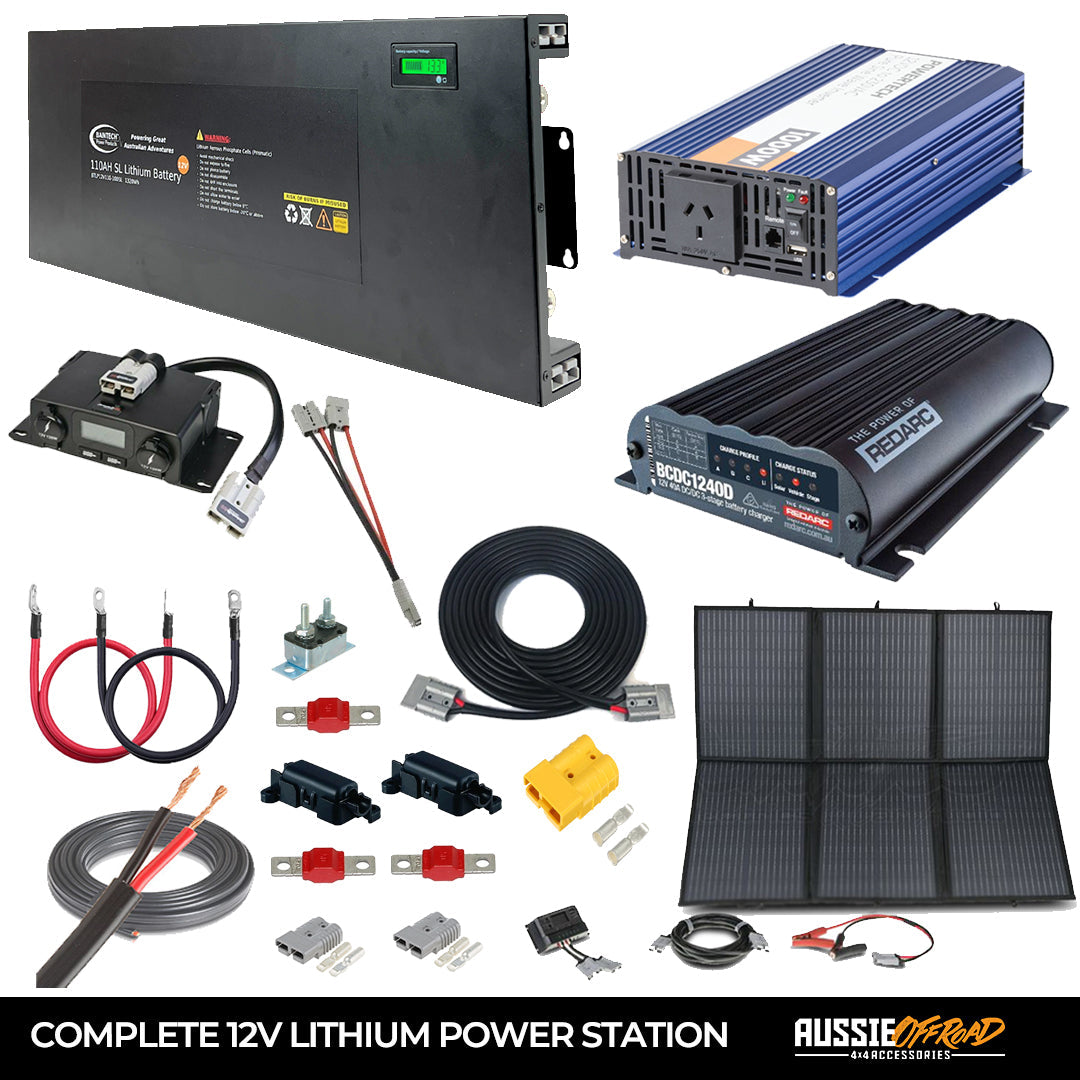

Package contains:

- Baintech 110ah / 100 Continuous Slimline LiFePO4 Lithium Battery (only 50mm wide)

- Redarc bcdc 40ah Battery Charger with built in solar input

- Powertech 1000watt Pure sine inverter

- Drivetech 200watt Solar Blanket + Controller

- Drivetech Mini Power distribution Box

- 5metres x 8bns twin core wiring cable

- 2bns postive & negative cables (Inverter wiring)

- 1 x Circuit breaker

- 3 x 50amp midi fuses

- 2 x midi fuse holders

- 10m anderson extension cable

- 1 x yellow (or red) Anderson for solar connection

- 2 x Grey Anderson Plugs

- 1 x Anderson dongle (2 to 1 split power connection)

Battery Features:

• Custom Built BMS
• Up to 5000 Charging Cycles | Lifecycle at 50% DOD
• Slimmest Design in the market
• Almost 2x the Capacity of a Lead acid battery
• Aluminum Powder Coated Enclosure
• Australian Designed
• Connect in Parallel: More capacity & Power
• Lightweight: Only 15kg
• Max Charge Current – 100A, 100 Continuous outflow
• Peak current – 250A(10s)
• BMS Low Voltage Cut-off – 8.8V (2.2+0.05v) pc)
• BMS Reconnect voltage – 10.8V (2.7+0.05v) pc)
• Weight – 15kg
• Case dimension (L*W*H) – 635 x 260 x 50mm
• Cell type / Chemistry – LiFePO4 chemistry
• BMS: low voltage, high voltage, over temperature
• Over current, short-circuit protection, Balancing etc.
• Discharge Temperature -20～+65℃
• Charge Temperature 0～+45℃
• Storage Temperature Range 0～+45℃
• Battery High Temperature Protection 60℃

REDARC BCDC Features

• Separate DC and solar charging inputs
• Maximises the performance and life of your auxiliary battery
• Simultaneous DC and solar charging with Green Power Priority
• Suits 12V/24V standard and variable voltage/smart alternators
• Suitable for AGM, GEL, standard lead acid, calcium and LiFePO4 batteries

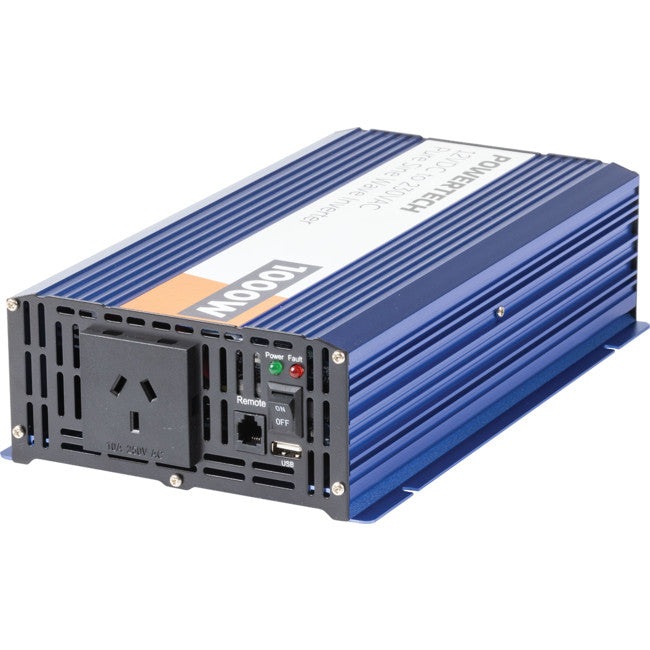

This pure sine wave inverter is suitable for mobile or permanent power installations. It is capable of providing 1,000W continuously and a 2,000W surge. Ideal for powering microwaves, power tools, TVs, and other power thirsty devices when you are away from mains power. It features a standard 240VAC mains outlet as well as a USB port (2.1A) to charge USB devices. To avoid your 12V battery going flat, a low voltage alarm will alert you when the battery voltage reaches 10.5V, and then shutdown the inverter when the battery reaches 10V. All of the safety features you expect, short circuit protection, overload, low/over voltage, and over temperature. Two built-in cooling fans automatically run when the inverter gets too hot so you can run it for longer in hot conditions. Supplied with heavy duty DC leads and remote control kit.

Features:
• 1000W AC Output
• 2000W max power start for 10 seconds
• Greater than 90% Efficiency
• Low voltage alarm and shutoff
• USB port to charge USB devices
